Weber carburetor for formula ford racing





weber 32/36 dgv carborator for formula carsThe Weber DGV series, 2-barrel, progressive down-draft carburetor, as used on both the Ford 1600cc Kent (Formula Ford) and 2000cc (Sports 2000 & Ford 2000), remains one of the most simplistic, yet tunable components on these and many other, small bore race vehicles.

Normal servicing may be required to keep the internals clean of foreign materials, both airborne and those delivered from the fuel system. Occasionally inspecting the float settings are required, normally due to the riggers of traveling by trailer to an event. Many of these units have been modified by engine builders, with small tubes running into the airstreams, thus care must be observed when performing any service or jet change function.

Adjustments normally carried out by an individual, would commonly be a jet change. The upper jets, just below the top cover (remove six screws), are know as Air Correctors (also, high speed bleeds). When those jets are removed the emulsion tubes below them are exposed (function = mix air and fuel). These have been known to get plugged with grass, tire rubber and grit, that somehow by-pass fuel and air filter assembly. In the bottom of the float bowl, is the Main Fuel jet. Both of these Jets, are measured in  .05 mm increments (1.45mm, 1.55mm, etc.) and sold as such.

Some common service parts are as follows.

Gasket, Carb Top
(between float bowl and top cover) #4E1360weber brass float and gaskets

Gasket, Carb Base to Manifold, F/F, F/2000
#5E1196

Return spring, secondary #4E1722

Check Valve, accelerator pump  #4E2658

Diaphragm, accelerator  #4E1362

Float
Brass   #4E1361
Plastic  #4E0828

Air Corrector Jet
Main Fuel Jet

Air No.
Prefix 4E
mm   Fuel No.
Prefix 4E
mm
1171 1.40   1713 1.40
1712 1.45   1714 1.45
1472 1.50   1483 1.50
1473 1.55   1484 1.55
1474 1.60   1485 1.60
1475 1.65   1486 1.65
1476 1.70   1487 1.70
1477 1.75   1488 1.75
1478 1.80   1489 1.80
1479 1.85   1490 1.85
1480 1.90   1491 1.90
1481 1.95   1492 1.95
1482 2.00   1493 2.00


For these or other replacement items, contact our service/parts department.



weber 32/36 dgv as used on formula ford race cars

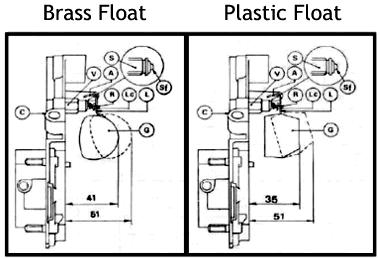

weber float settings
These are 32/36 DGV base float settings, as used on a 1.6Ltr Formula Ford or 2.0Ltr S-2000. Contact your engine provider for any further setting information.





Pipercross air filter

pipercross foam air filter for webers on a formula ford or formula ford 2000

Available as a lightweight throw away filter, designed for the DGV, DGAV, DGAR, etc. Weber carburetors.

Part# 5A2180   *Length 160mm * Width 135mm * Height 90mm









Ramair air filter

ramair formula ford air filter



The FF filter series has been developed for the Ford Kent motor. The compact design allows the filter to occupy a small space, but maintain a high airflow. The baseplate bolts directly to the carburetor body. The oval shape runs parallel to the engine. This is the replacement for many OEM single seater applications using the Weber 32/36DGV Weber carburetor, such as the late 80's Reynard.

Part# 5A1597 *Height, 90mm (65mm internal)
