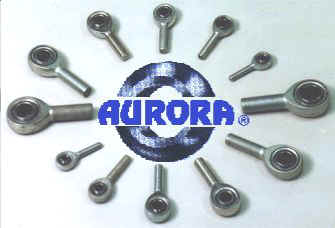

Made to our specifications, this series of Aurora rod ends are available in both left and right handed threads and in either male or female versions. They are commonly used on severe duty suspension applications, particularly on many older racing vehicles that were designed with larger bearings in mind. Our requirements for a standard size body, high strength alloy bearing, with lighter than standard rotating torque and a PTFE race liner, make these precision bearings ideal for many applications.
Specifications for Silver Series
Three-piece Rod End
-
BODY- Alloy Steel, heat treated, protective coated for corrosion resistance
-
RACE- Carbon Steel with PTFE liner
-
BALL- Alloy Steel, heat treated, hard chrome plated
-
PTFE Liner- AT1100, chemically bonded to inner diameter of race
Dimensions for Male Rod Ends, sizes in inches
| Size | B | W | H | A | D | C | N Thread UNF-3A |
a |
Ultimate Radial Static Load Lbs. |
| #4 | .250 | .375 | .281 | 1.562 | .750 | 1.00 | 1/4-28 | 16 | 5,260 |
| #5 | .3125 | .437 | .344 | 1.875 | .875 | 1.25 | 5/16-24 | 14 | 7,635 |
| #6 | .375 | .500 | .406 | 1.938 | 1.00 | 1.25 | 3/8-24 | 12 | 9,540 |
| #7 | .4375 | .562 | .437 | 2.125 | 1.125 | 1.375 | 7/16-20 | 14 | 10,285 |
| #8 | .500 | .625 | .500 | 2.438 | 1.312 | 1.50 | 1/2-20 | 12 | 16,235 |
| #10 | .625 | .750 | .562 | 2.625 | 1.50 | 1.625 | 5/8-18 | 16 | 17,955 |
| #12 | .750 | .875 | .687 | 2.875 | 1.750 | 1.750 | 3/4-16 | 14 | 28,080 |
For AN bolts and rod-end jam nuts see Fasteners
inquire for larger sizes or female versions
