reynard
ff & fc

1987 - 92

reynard suspension parts, ford 2000 & formula ford 1987 - 1992

Front Beam    *        #1S0601
Front Lower Wishbone   * #2S1513
Front Rocker Arm, LF   * #2S0608
Front Rocker Arm, RF   *  #2S0607
Front Upright, Cast, LH   *    #2S0675
Front Upright, Cast, RH   * #2S0674
Front Toe Link  * #2S0617
Rear Beam   * #1S0610
Rocker Bearing Mount (same front - rear)* #1S0600
Rear Lower Wishbone   * #2S0612
Rear Rocker Arm, LR    * #2S0614
Rear Rocker Arm, RR    *   #2S0613
Rear Upright, Cast (both sides)   * #2S0676
Rear Toe Link, Aluminum    * #2S0611
Wheel Retaining Collar w/Nut   #2S0546

*less bearings

Techspeed
Many of the late model Reynard suspension items listed on this page were made at this company. Located in Brazil and known more for their racing Karts in that market, they were the authorized builder of the Reynard Formula-Chevrolet (Formula Vauxhall) cars for that Brazilian series in the early 90's.

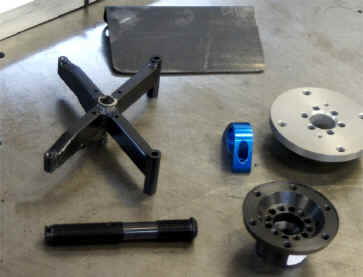

reynard chassis parts 1987 and up

Wheel Flange (same all corners)               #2S0591
Wheel Locating Spigot (same all corners) #2S0592
Wheel Spindle, Center-lock (stub axle) #2S0593
Wheel Flange Retainer, Front   #2S0594
Wheel Flange C/V Retainer, Rear  #2S0597
Front V-Skid Set #1S0705
Mid-Skid Block, each #1S0582
Rear Gearbox Skid Plate #1S0575
Rear Lower Wishbone Mount #1S0682
Rear Shock Lwr Mount #1S0683
Aluminum Nose Box #1S0588





Front Droop Limiter #1S0606
Front Anti-Roll Bar, 1" X.156" wall  + #1S0634
F/C Rear Anti-Roll Bar, 1" X .156 wall  + #1S0636
Reynard Starter Gear for 110 tooth ring gear #6D0666
Gearbox bushing, Starter Gear #1B2247
Clutch Lever Arm #1J0686
Clutch O-Ring Set #8E0699
Throw-out Bearing #8B0283
Throttle Cable, 115" over-all length #1J0647

+ other sizes upon request



1989 reynard fc single seater racing in the glc series



Spherical Joints, Rod-Ends and Bearings 1987-1992

Location Qty Part # Bore Thread
Frt. Wishbone/chassis 2 PRM-6T 3/8" 3/8 UNF
Frt. Wishbone/chassis PRXM-5T 5/16" 3/8 UNF
Frt. Wishbone/upright 2 PRXM-8T 1/2" 5/8 UNF
Frt.  Rocker Pivot 2 PWB-8T 1/2"
Frt. Rocker Pivot 2 PNB-8T 1/2"
Frt. Rocker/Upright 2 PWB-10T 5/8"
Rear Rocker Pivot 2 PWB-8T 1/2"
Rear Rocker Pivot 2 PNB-8T 1/2'
Rear Rocker/Upright 2 PRXM-8T 1/2" 5/8 UNF
Rear Toe Link/Inner 2 PRXB7T 7/16" 1/2UNF LH
Rear Toe Link/Outer 2 PRM-10T 5/8" 5/8 UNF
Rear Wishbone/Inner 2 PRM-8T 1/2"  1/2 UNF
Rear Wishbone/Inner 2 PWB-8T 1/2"
Rear Wishbone/Outer 2 PWB-10T 5/8"
Front Toe Link/Inner 2 PRXB-5T 5/16" 3/8 UNF LH
Front Toe Link/Outer 2 PRM-6T 3/8" 3/8 UNF
Front ARB Drop Link 4 3R1515 1/4" 1/4 UNF
Rear ARB Drop Link 4 3R1517 5/16" 5/16 UNF
Gear Lever Mount 1 3R1124 3/8" 3/8 UNF
Gear Linkage Guide 2 3R1561 1/2" 1/2 UNF
Throttle Cable 2 3R1117 3/16" 3/16 UNF
Rear ARB Cable 1 3R1117 3/16" 3/16 UNF
Wheel Bearing 4 3B0595



Ultra Reynard Radiator Side-Covers #7U1954
Aluminum Radiator #1S0643
Rear Undertray #7U0567
Ultra Reynard Fiberglass Nose (white) #7U1445

Inquire about Ultra and standard wings, cable tray supports, and other items unique to Reynard cars



Torque Setting (from 1987 assembly manual)

Thread Size                    Torque ft/lbs. (half nut)        Torque ft/lbs (full nut or full thread depth into casting)

1/4" or M 6                        approx 5-6  ft/lbs                    approx 8-10  ft/lbs

5/16" or M 8                        "      10-12  "                            "      18-20    "

3/8" or M 10                        "      20-22  "                            "       32-34   "

7/16"                                    "     40-42   "                            "      68-72    "

1/2" or M 12                         "     50-54   "                            "      78-82     "

3/4"                                       "    80-85    "                            "    110-130   "

CV Joint Drive Shaft Bolts                                                                26     "

Wheel Flange Retainer Bolts                                                              26    "

Wheel Center-lock Nut Torque                                                   120-130 "
